Manufacturer & Exporter of Various Types of precision turned components and metal parts in Brass, Copper, Bronze, Steel, and Aluminium.

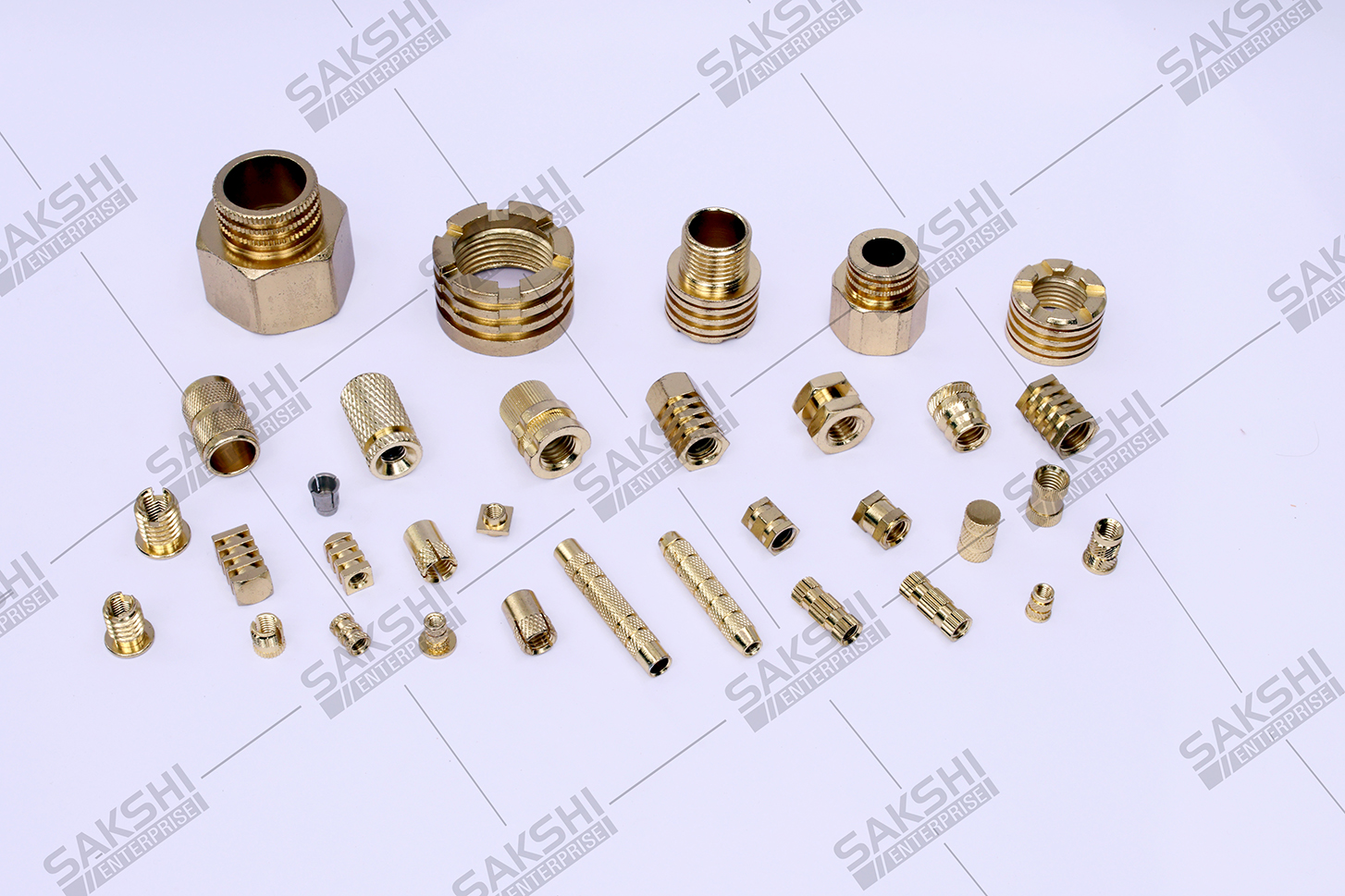

BRASS INSERTS & Bush

We are manufacturing all types of Brass Inserts like Brass Threaded Inserts, Brass Knurled Inserts, Brass Hex Inserts, Brass Square Inserts, Compression Limiters, custom Brass Inserts for Plastic and Wood. We offer wide range of Brass Inserts include Brass Knurled Inserts with Straight, Diamond, Cross and Helical Knurling, Brass Molding Inserts and Molding Bush for Insert Molding in Plastic and Injection Molding, Our special range of Brass Hexagon and Square Type Inserts like Brass Hex Inserts, Brass Hex Drive Inserts, Brass Hex Insert Nut, Brass Square Inserts, Square Insert Nut, Brass Insert Nut Blind or Thru Threaded Brass Roto Molding Inserts, Brass CPVC Inserts and Brass PPR Inserts for CPVC and PPR Pipe Fittings.

We offer a full line of Brass Inserts for all methods of installation like Heat/Ultrasonic, Thermal, Press-in, Mold-in Series Inserts like Ultrasonic Inserts, Brass Press-in Inserts and Molded-in Inserts with and without collars Brass Self Tapping Inserts. Brass Inserts for Plastic, Wood, Composites, Thermoplastic, ABS, Bakelite and Acrylic Applications used in Electrical, Electronic, Telecomunications, Automotive and Plastic Molding Industries. The inserts available in various materials like Brass Inserts, Stainless Steel Inserts and Aluminum Inserts as per Customers Design or Requirements.

KEY FEATURES:
  • Made from high quality and tested raw materials to give excellent performance.
  • The threads of the inserts as per International Go & Not-Go Standards.
  • Knurling & Deep Groove options availability to give solid gripping and maximum Pull Out Resistance.
  • ID after Threads with very close tolerance to prevent unnecessary flush to enter into the inserts.
  • The Inserts available in various design like knurled, Flanged, Symmetrical, Grooved, Blind & Thru Threaded.
TYPES OF BRASS INSERTS
  • Brass Knurled Inserts
  • Brass Threaded Inserts
  • Brass Hexagon Inserts
  • Brass Square Inserts
  • Brass Press-in Inserts
  • Brass Molded-in Inserts
  • Brass Self Tapping Inserts
  • Brass Expansion Inserts
  • Brass Heat/Ultrasonic Inserts
  • Brass CPVC & PPR Fitting Inserts
  • Custom Brass Inserts
  • Compression Limiters
STANDARD:

DIN, ISO, ASTM, EN, JIS, GB & Other International Standards.

THREADS / SIZE:

Brass Inserts Size available from M2 to M30 and special up to M36, and 1/8’’, 5/32’’, 3/16’’, 1/4’’, 5/16’’, 3/8’’, 1/2’’, 3/4’’, 1’’, 1-1/2”, 2” or Custom Designs and requirements.

ISO Metric (MM) / BA / BSW / BSP / BSPT / BSF / BSB / UNC / UNF / UNEF / NPT / NPS / Any Specific Threads.

MATERIALS:
  • Free Machining & High Grade Brass: CuZn39Pb3 / CuZn39Pb2 / CuZn38Pb1.5 / CuZn37 / CuZn40Pb2 / MS 58 / BS2874 / IS 319 (Type I & II)
  • UNS (ASTM): C35300 / C36000 / C36500 / C37000,
  • BS: CZ121 / CZ122 / CZ124 / CZ128 / CZ131,
  • EN: CW606N / CW612N / CW614N / CW617N,
  • JIS: C3603 / C3604

-Any Free Machining, Lead Free and High Grade Specific Brass Materials.

SURFACE PLATING & COATING:

Natural Clean / Nickel Plated / Electro-Tin Plated / Silver Plated / Copper Plated / Zinc Plated / Chrome Plated / Any Specific Surface Finish.

We manufacture Brass Inserts and export to USA, UK, Canada, Australia, European Countries & Middle East as per custom specifications / technical drawing / sample piece. Please send us: Inquiry for more information.
